Broan-Nutone Bathroom Fan Installation Instructions

Installing a Broan-Nutone bathroom fan is a relatively straightforward process that can significantly improve air quality and ventilation in your bathroom. This article will guide you through the installation steps, providing a comprehensive understanding of the process.

Step 1: Gather Your Supplies and Tools

Before starting any installation, it's crucial to have all necessary supplies and tools readily available. For installing a Broan-Nutone bathroom fan, you will need:

Broan-Nutone bathroom fan unit

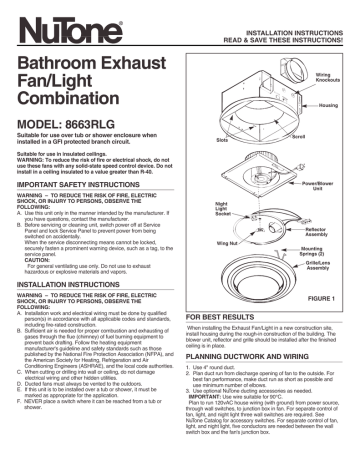

Installation manual (provided with the fan)
Screwdriver (Phillips and flathead)
Wire strippers
Electrical tape
Voltage tester
Level
Measuring tape
Safety glasses and gloves
Drill with appropriate drill bits
Optional: Fan template (provided with some models)
Optional: J-box extension, if necessary

Note that specific requirements may vary depending on the model of Broan-Nutone fan you are installing. Refer to your installation manual for detailed instructions and any model-specific tools.

Step 2: Power Disconnection and Preparation

Safety is paramount during any electrical work. Before beginning the installation, you must disconnect the power to the bathroom circuit.

Locate the circuit breaker controlling the bathroom's electrical outlet.
Turn off the breaker, then use a voltage tester to confirm that the power is off.
If you have an existing fan, remove it from the ceiling. This may involve removing screws holding the fan housing in place.
Carefully remove the old wiring connections, if applicable.
Prepare the ceiling area for the new fan. This might involve cleaning, removing old caulk, and ensuring the surface is smooth and stable.

It is important to thoroughly inspect the existing electrical wiring. If there are any signs of damage or wear, it's advisable to have a qualified electrician assess the situation before proceeding.

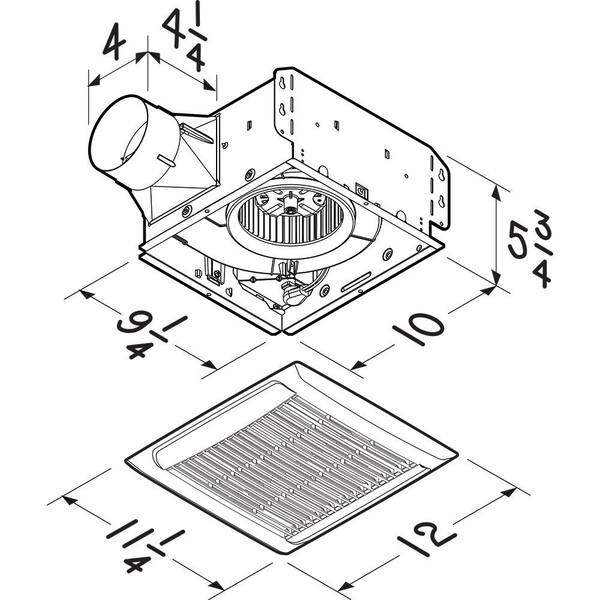

Step 3: Install the Fan Housing

The installation of the fan housing is a crucial step.

With the power off, position the fan housing on the ceiling cutout, ensuring it’s centered and level.
Use a pencil to mark the screw hole locations on the ceiling.
Remove the fan housing and drill pilot holes at the marked locations.
Use appropriate sized screws to secure the fan housing to the ceiling.

For some models, a fan template might be provided, which can simplify the alignment process. Properly attaching the fan housing is crucial for ensuring the fan's stability and proper function.

Step 4: Connect the Electrical Wiring

Connecting the electrical wiring is a critical step that requires careful attention.

Carefully strip the insulation off the ends of the fan's wiring and the existing wiring in the ceiling.
Match the wires based on color (typically black to black, white to white, and green to green).
Twist the corresponding wires together and secure them with wire nuts.
Push the wires securely into the fan’s junction box.
Ensure the wires are properly connected before tightening the fan’s junction box cover.

Refer to the installation manual for specific wiring diagrams and instructions for your particular model. Additionally, if you are unsure about any aspect of the electrical wiring, consulting a qualified electrician is recommended.

Step 5: Install the Fan Grill and Finish

The final step involves attaching the fan grill and completing the installation.

Position the fan grill over the fan housing, ensuring it is aligned properly.
Secure the fan grill to the fan housing using the provided screws or clips.
Test the fan by turning the power back on at the breaker.
Verify that the fan operates as intended, checking for proper air flow and any unusual sounds.
If necessary, apply caulk around the fan housing and the wall or ceiling to prevent air leaks.

Remember to carefully follow the instructions provided by your Broan-Nutone model.

Important Points

While the above steps provide a general overview, the installation process can vary depending on the specific model of Broan-Nutone bathroom fan. Always consult the instruction manual provided with your fan for detailed and model-specific instructions.

For any electrical work, safety should be your top priority. If you are uncomfortable working with electrical wiring, it is highly recommended to consult a qualified electrician.

Regular maintenance of your Broan-Nutone bathroom fan is crucial for optimal performance. This includes cleaning the fan blades, filter, and housing as needed.
